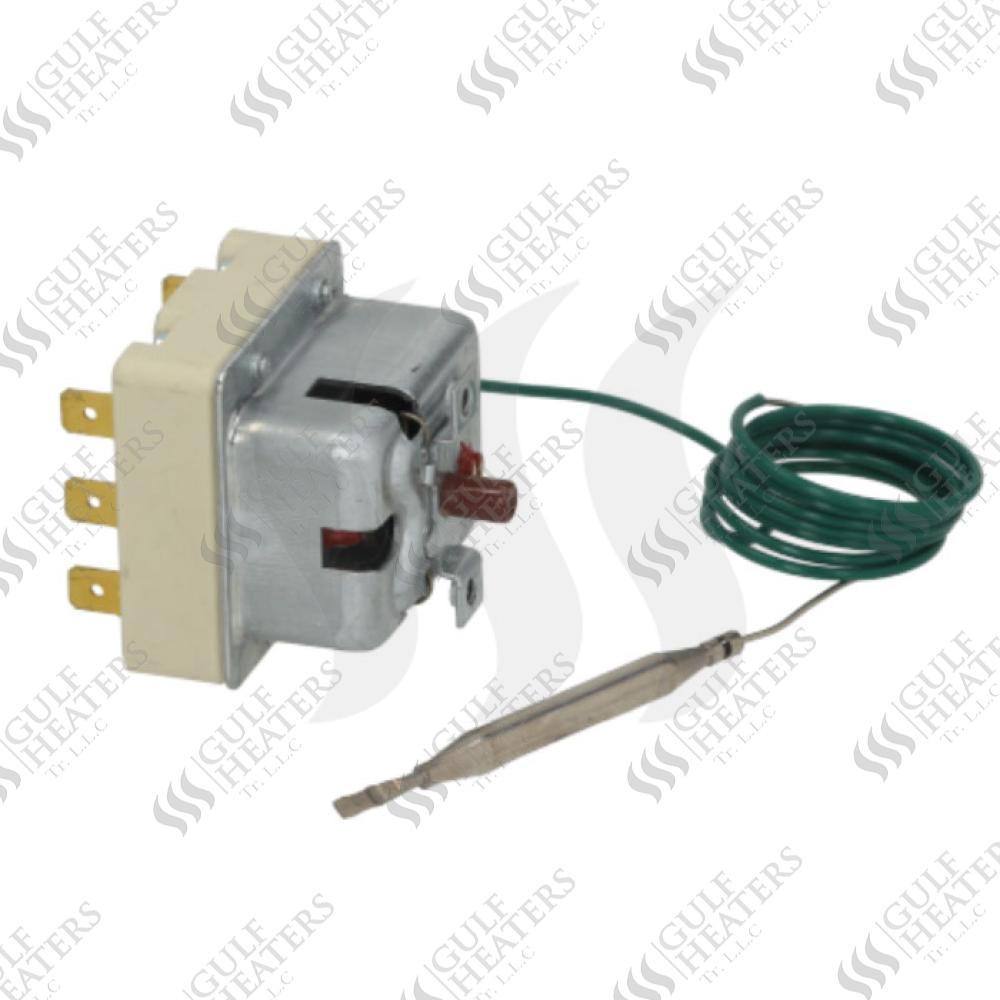

Name: Thermostat Reset 3 phase 55.34235.040
SKU: 55.34235.040
Price: 594 AED
Availability: InStock

Temperature max.	190 °C
Number of poles	3 -pole
Function	1CO/2NO
Switching capacity	16 A
Probe diameter	4 mm
Probe length	157 mm
Capillary pipe length	1780 mm
Gland nut	-
Shaft diameter	ø6x4.6 mm
Operating temperature range	106-190 °C
Capillary pipe length insulated	1500 mm
Shaft length	23 mm
Rotation angle	270 °
Producer	EGO
Series	55.34_
Shaft position	upper
Weight	0,180 kg

Description

Model:	55.34235.040
Lead Time:

Thermostat Reset 3 phase 55.34235.040
